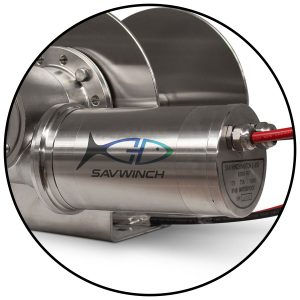

SAWINCH 1000 SS boat drum anchor winch
Fully waterproof!!
1000watt all stainless steel motorOur international award winning Drum Winches feature specifically designed marine graded patented motors and oversized Worm Drive Gearboxes and are IP68 rated to suit even the harshest environments.
The motors can be moved into 12 different positions to ensure that each Drum Winch can be installed on almost any vessel. Paired with our EFF Electronic Fast Fall System our Drum Winches can reach speeds of over 100m per minute.
The Signature Series (SS) is our premium range of Drum Winch and features a complete stainless steel motor, designed locally and exclusively for Savwinch. Machined to fine tolerances and utilising O ring seals, the SS series motors are completely submersible without the use of sealants or glues. You no longer need to be concerned about water ingress or corrosion.
he Signature Series is our most popular Series, it features a 316 Stainless Steel Motor, a Double Marine Grade Powder Coated Aluminium Gearbox, and a 316 Stainless Steel Drum. As with all of our Winches, the Signature Series is IP68 rated and features a patented injection mould which fills all of the air pockets inside the motor. The motor is a solid block Stainless Steel motor (no covers/sleeves over the motor) which combined with the injection mould ensures no moisture or condensation can get inside the motor.
Details
WEIGHT: 15kgs
MAX RETRIEVAL RATE: 40MTRS PER MINUTE
MAX FALL RATE: 50MTRS PER MINTUE!
VESSEL LENGTH: 5 - 8m / 16 - 26ft
POWER SUPPLY (DC) 12V
MOTOR: COMMERCIAL 1000WATT
MAX LOAD: 180Kgs
WORKING LOAD: 75kgs
MOUNTING: Anchor Well, Deck Mount & Cabin Mount using Hawse Pipe 30023
WEIGHT: 15kgs
WELL CLEARANCE REQ: W 39cm L 35cm H 25cm
Fixing Base Size: 25.5 X 12cm
